/*★ Numberplace の画面を描画する 前田 稔 ★*/
using System;
using System.Drawing;
using System.Windows.Forms;
public class MyForm : Form
{
IMAGE m_back; //盤全体
IMAGE m_number; //選択画像
Card m_num; //０～９の数字
Card m_mini; //ヒントの数字
Card m_color; //背景色
int[,] m_b = new int[9, 9] //Base テーブル(答え)
{{ 8,1,9,4,6,7,2,3,5 },
{ 2,4,6,5,1,3,8,7,9 },
{ 5,7,3,8,9,2,4,6,1 },
{ 3,5,8,2,4,1,7,9,6 },
{ 4,6,7,9,3,5,1,2,8 },
{ 9,2,1,6,7,8,5,4,3 },
{ 1,3,5,7,2,6,9,8,4 },
{ 7,8,4,3,5,9,6,1,2 },
{ 6,9,2,1,8,4,3,5,7 }};
int[,] m_t = new int[9, 9]; //数字(問題)テーブル
int[,] m_ct = new int[9, 9]; //色テーブル
int m_no = 0; //選択数字
Random rand = new Random();
private MenuStrip menuStrip1;
private ToolStripMenuItem fileFToolStripMenuItem;
private ToolStripMenuItem saveSToolStripMenuItem;
private ToolStripMenuItem loadLToolStripMenuItem;
private ToolStripMenuItem exitXToolStripMenuItem;
private ToolStripMenuItem newGameGToolStripMenuItem;
private ToolStripMenuItem level1AToolStripMenuItem;
private ToolStripMenuItem level2BToolStripMenuItem;
private ToolStripMenuItem level3CToolStripMenuItem;
private ToolStripMenuItem resetRToolStripMenuItem;
private ToolStripMenuItem completeQToolStripMenuItem;
private ToolStripMenuItem toolTToolStripMenuItem;
private ToolStripMenuItem checkCToolStripMenuItem;
private ToolStripMenuItem hintHToolStripMenuItem;
private ToolStripMenuItem aToolStripMenuItem;
private ToolStripMenuItem helpHToolStripMenuItem;
private ToolStripMenuItem versionVToolStripMenuItem;
public void Debug(string msg, int n)
{
Console.Write("\n" + msg + n);
}
public void Debug(int[,] t)
{
int x, y;
for (y = 0; y < 9; y++)
{
for (x = 0; x < 9; x++)
{ Console.Write(t[y, x]); }
Console.Write("\n");
}
}
public MyForm()
{
InitializeComponent(); // 追加する
Width = 600;
Height = 700;
m_back = new IMAGE(@"c:\data\test\back.gif");
m_number = new IMAGE(@"c:\data\test\number.gif");
m_num = new Card(@"c:\data\test\num.gif", 60, 60);
m_mini = new Card(@"c:\data\test\minicor.gif", 30, 30);
m_color = new Card(@"c:\data\test\color.gif", 60, 60);
Paint += new PaintEventHandler(MyHandler);
MouseDown += new MouseEventHandler(OnMyMouseDown);
m_no = 0;
Generate(35);
}

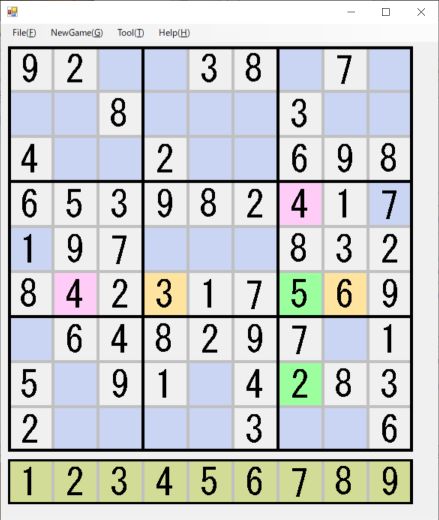

// 盤を描画
private void MyHandler(object sender, PaintEventArgs e)
{
Graphics g = e.Graphics;
if (m_back.bmp == null) Application.Exit();
for (int y = 0; y < 9; y++)
{
for (int x = 0; x < 9; x++)
{
if (m_ct[y, x] > 0 && m_ct[y, x] < 10)
m_color.View(g, m_ct[y, x] - 1, x * 60 + 10, y * 60 + 30);
if (m_t[y, x] > 0 && m_ct[y, x] < 10)
m_num.View(g, m_t[y, x], x * 60 + 10, y * 60 + 30);
}
}
m_back.View(g, 10, 30);
m_number.View(g, 10, 580);
}
// マウスのクリックを検出
private void OnMyMouseDown(object sender, MouseEventArgs e)
{
int xp, yp;
xp = (e.X - 10) / 60;
yp = (e.Y - 30) / 60;
if (e.Button == MouseButtons.Left) //マウスの左ボタン
{
if (e.Y > 580)
{ m_no = xp; }
else
{
if (xp > 8 || yp > 8) return;
if (m_ct[yp, xp] != 0)
{
if (m_t[yp, xp] == 0) m_t[yp, xp] = m_no + 1;
else m_t[yp, xp] = 0;
m_ct[yp, xp] = 1;
}
}
}
if (e.Button == MouseButtons.Right) //マウスの右ボタン
{
if (xp > 8 || yp > 8) return;
if (m_ct[yp, xp] != 0)
{
m_ct[yp, xp] = (m_ct[yp, xp] + 1) % 5;
if (m_ct[yp, xp] == 0) m_ct[yp, xp] = 1;
}
}
Debug("m_no:", m_no);
Invalidate();
}
private void InitializeComponent()
{
this.menuStrip1 = new System.Windows.Forms.MenuStrip();
・・・
// メニューを登録すると作成される InitializeComponent() です
・・・
}
// m_b[9,9] を元に問題を作成する
public void Generate(int rate)
{
for (int y = 0; y < 9; y++)
for (int x = 0; x < 9; x++) m_t[y, x] = m_b[y, x];
// m_t[y,x] ← 0, m_ct[y,x] ← 1 で穴抜きを設定
for (int y = 0; y < 9; y++)
for (int x = 0; x < 9; x++)
{
m_ct[y, x] = 0;
if (rand.Next(100) < rate)
{
m_t[y, x] = 0;
m_ct[y, x] = 1;
}
}
Invalidate();
}
}
class IMAGE
{
public Bitmap bmp;
・・・
// 先に説明した Image Class です
・・・
}
//☆ Card Object Class
class Card
{
public Bitmap bmp;
・・・
// 先に説明した Card Class です
・・・
}
class form01
{
public static void Main()
{
MyForm mf = new MyForm();
Application.Run(mf);
}
}
|
