#テキストを配置

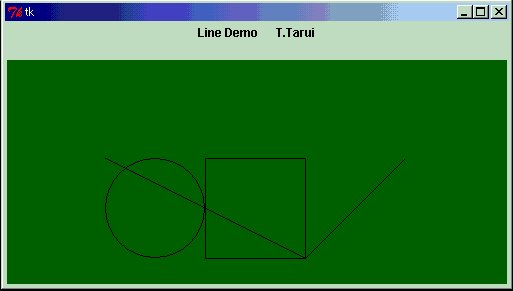

TkLabel.new{
text "Line Demo T.Tarui\n"
pack
}
$c = Canvas.new
#キャンバスの初期化
$c.pack
$c.width 500
$c.background "darkgreen"
Line.new($c,100,100,300,200)
# 直線
Line.new($c,300,200,400,100)
# 直線
Oval.new($c,100,100,200,200)
# 円(楕円)
Rectangle.new($c,200,100,300,200) # 正方形(長方形)
Tk.mainloop
--------------------------------------------------------------------------

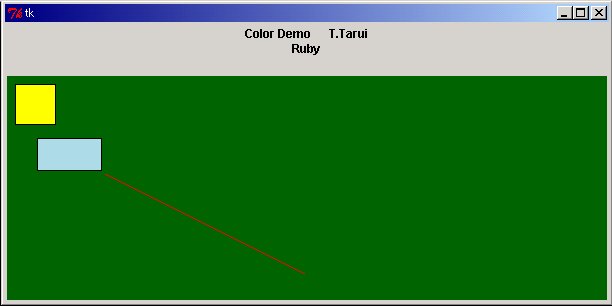

2.Color Demo
-------------------------------------------------------------------------
require "tkclass"
TkLabel.new{
text "Color Demo T.Tarui\nRuby\n"
pack
}
canvas = TkCanvas.new
canvas.background "darkgreen"
canvas.width 600
TkcRectangle.new(canvas, '1c', '2c', '3c', '3c','outline' => 'black', 'fill' => 'LightBlue')
TkcRectangle.new(canvas,10,10,50,50,'outline' => 'black', 'fill' =>
'Yellow')
TkcLine.new(canvas,100,100,300,200,'fill' => 'red')
canvas.pack
Tk.mainloop
-------------------------------------------------------------------------

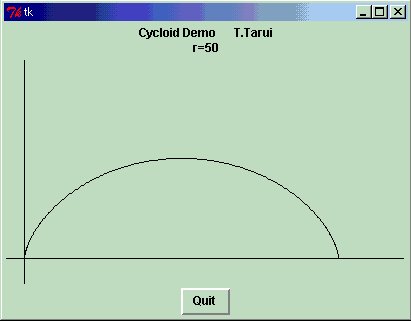

3.Cycloid Demo
-------------------------------------------------------------------------
#########################################
# Cycloid Demo Dec.10 2000 T.Tarui #
#########################################
require "tkclass"
# ラベル
TkLabel.new {
text "Cycloid Demo T.Tarui\n"+"r=50"
pack
}
# サイクロイド描画
r=50
$c = Canvas.new
$c.pack
$c.width 400
Line.new($c,0,200,400,200)
Line.new($c,20,0,20,400)
x0=0
y0=0
for i in 1..360
x=r*(3.14*i/180-Math.sin(3.14*i/180))
y=r*(1-Math.cos(3.14*i/180))
Line.new($c,x0+20,200-y0,x+20,200-y);
x0=x
y0=y
end
# Quitボタン
TkButton.new {
text 'Quit'
command proc{
exit
}
pack('side'=>'bottom')
}
Tk.mainloop
-------------------------------------------------------------------------

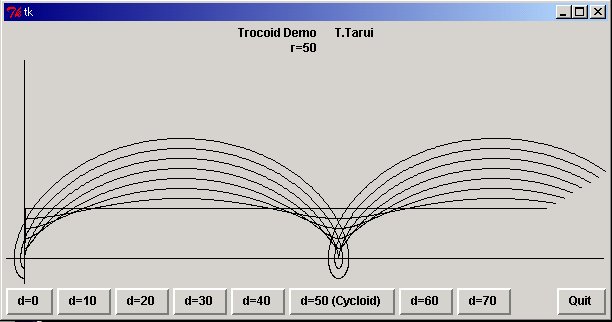

4.Trocoid Demo
-------------------------------------------------------------------------
#########################################
# Trocoid Demo Dec.10 2000 T.Tarui #
#########################################
require "tkclass"
# ラベル
TkLabel.new {
text "Trocoid Demo T.Tarui\n"+"r=50
"
pack
}
# 描画領域作成
$r=50
$c = Canvas.new
$c.pack
$c.width 600
Line.new($c,0,200,600,200)
Line.new($c,20,0,20,500)
# ボタン
TkButton.new {
text 'd=0'
command proc{
$d=0
prot
}
pack('side'=>'left')
}
TkButton.new {
text 'd=10'
command proc{
$d=10
prot
}
pack('side'=>'left')
}
TkButton.new {
text 'd=20'
command proc{
$d=20
prot
}
pack('side'=>'left')
}
TkButton.new {
text 'd=30'
command proc{
$d=30
prot
}
pack('side'=>'left')
}
TkButton.new {
text 'd=40'
command proc{
$d=40
prot
}
pack('side'=>'left')
}
TkButton.new {
text 'd=50 (Cycloid)'
command proc{
$d=50
prot
}
pack('side'=>'left')
}
TkButton.new {
text 'd=60'
command proc{
$d=60
prot
}
pack('side'=>'left')
}
TkButton.new {
text 'd=70'
command proc{
$d=70
prot
}
pack('side'=>'left')
}
# Quitボタン
TkButton.new {
text 'Quit'
command proc{
exit
}
pack('side'=>'right')
}
# 描画
def prot
x0=0
y0=0
for i in 1..600
x=$r*3.14*i/180-$d*Math.sin(3.14*i/180)
y=$r*1-$d*Math.cos(3.14*i/180)
Line.new($c,x0+20,200-y0,x+20,200-y);
x0=x
y0=y
end
end
Tk.mainloop
------------------------------------------------------------------
